Project Tag: Passive House

Noble Prize (Street)

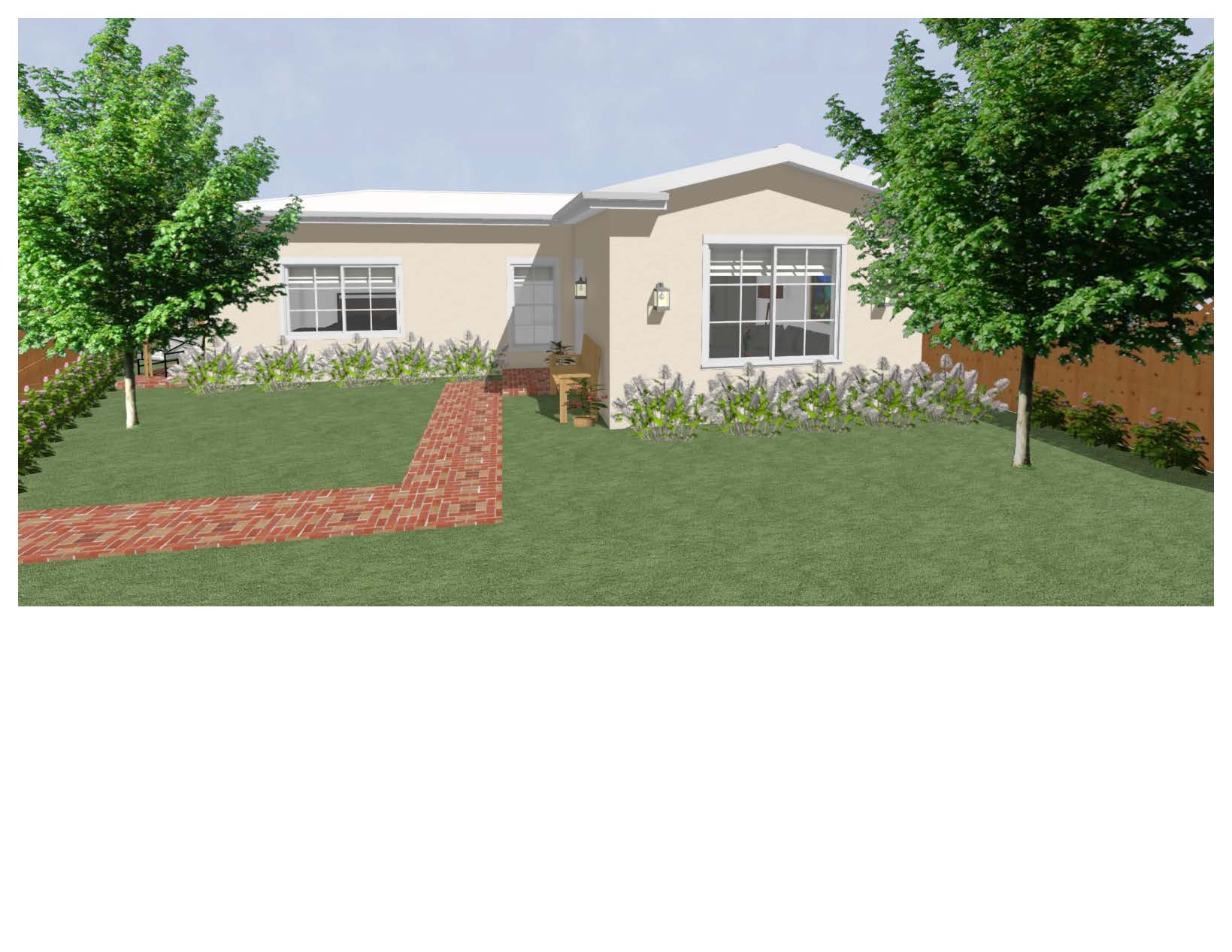

A single family Accessory Dwelling Unit (ADU) residence, that is 1-story, with an Electric Ductless Heat Pump HVAC System, Electric Heat Pump Water Heater, and an ERV for filtered indoor air. XPS Subslab insulation @ R-20, Exterior wall insulation @ R-35, Gable roof insulation @ R-65. Windows are from Alpen @ U- 0.13 – 0.19.
This home will be Certified through PHI, via EMU Passive out of Colorado.

Passive House West Los Angeles

New two-story single-family residence with roof deck located in the City of Los Angeles in close proximity to the Santa Monica Airport, California. The passive house is designed by PARAVANT Architects and is currently under construction.
The residential building is constructed entirely with structural steel and metal decking topped with concrete. Continuous insulation is applied on the exterior walls covered with a curtain wall system. Insulation is applied on the roof deck. All penetrations on the roof deck and the cantilever balcony connection feature a thermal insulation material made by Fabreeka.

More information can be found on project website or at PARAVANT Architects or PASSIVE HOUSE LA

Team: Marco Bacaloni, Frank Maldonado, Siavosh Sepanta, Halil Dolan
